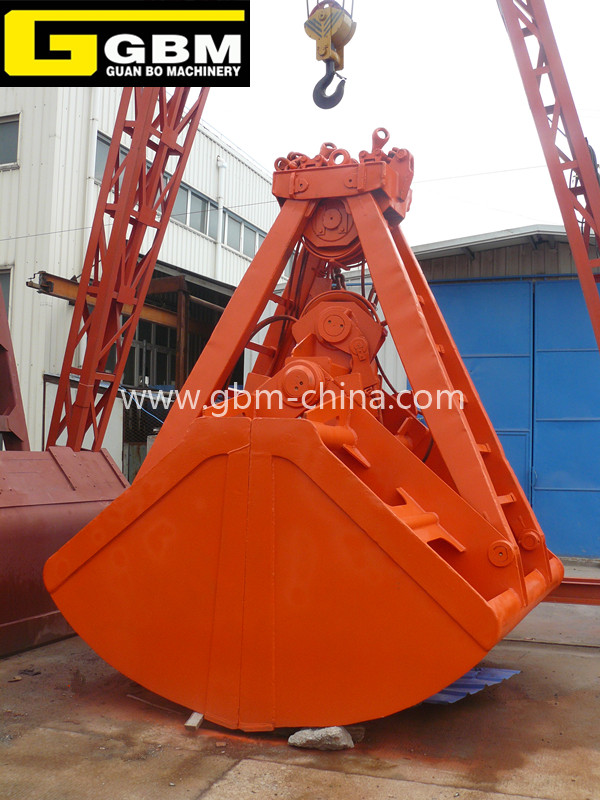

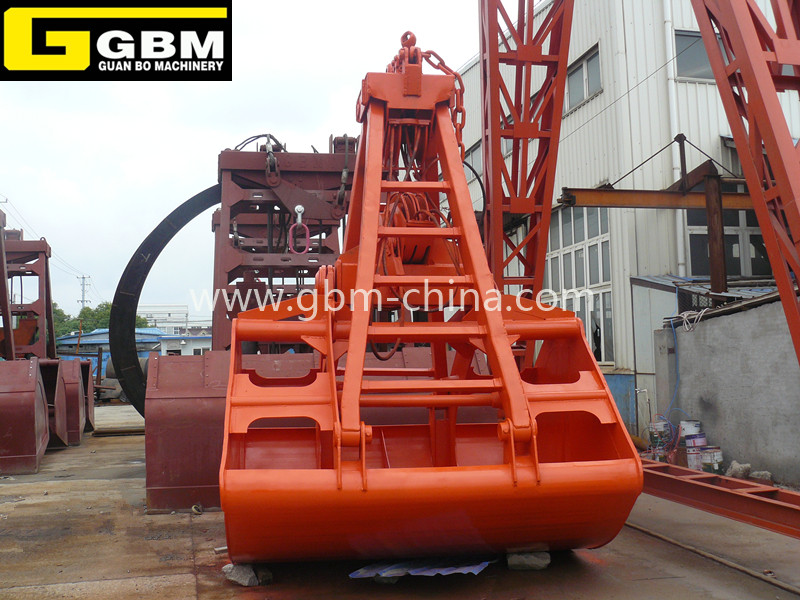

Two rope clamshell grab
 |
Details:
Two rope clamshell grab is an effective tool for loading and unloading bulk cargoes such as yellow sand, coal, mineral powder, and bulk chemical fertilizers under various harsh environments. The grab structure is simple, the opening and closing mechanism is novel, and the operation is convenient. It can accurately complete the opening and closing movement under various conditions. Grabs use three-dimensional virtual design, and use ANSYS software for strength analysis and check, self-weight distribution is more reasonable, longer life. Grabs are suitable for loading and unloading all kinds of bulk cargo with small double-reel cranes. Generally, the weight of two-rope bulk grabs is not more than 16t. There are liting ears in the upper beam,and it can be directly connected with the hoisting rope shackle of the crane.Contact Us
连接方式：
|
总起重量 (t) |
6.3 |
8.0 |
10.0 |
12.5 |
16.0 |
20.0 |
25.0 |
||
|
自重 (Kg) |
4倍率 |
2300 |
2800 |
3440 |
4500 |
5600 |
7360 |
8800 |
|
|
5倍率 |
2460 |
2880 |
3600 |
4660 |
5760 |
7520 |
9000 |
||
|
斗 容 (m3) |
4倍率 |
2.5 |
3.2 |
4.0 |
5.0 |
6.5 |
7.9 |
10.1 |
|
|
5倍率 |
2.4 |
3.2 |
4.0 |
4.9 |
6.4 |
7.8 |
10.0 |
||
|
滑轮 |
直径mm |
355 |
400 |
450 |
500 |
560 |
630 |
630 |
|
|
钢 |
直径mm |
18 |
20 |
22 |
24 |
26 |
28 |
32 |
|
|
长度 |
4倍率 |
11.5 |
12.8 |
13.8 |
15.0 |
16.5 |
17.8 |
18.6 |
|
|
5倍率 |
14.0 |
15.5 |
16.8 |
18.5 |
20.5 |
21.8 |
23.0 |
||
|
行程 |
4倍率 |
5940 |
6600 |
7100 |
7680 |
8520 |
8920 |
9760 |
|
|
5倍率 |
7425 |
8250 |
8875 |
9600 |
10650 |
11150 |
12200 |
||
|
外形尺寸(mm) |
A |
3080 |
3430 |
3700 |
4010 |
4380 |
4770 |
4990 |
|
|
B |
2600 |
2900 |
3100 |
3350 |
3640 |
4020 |
4120 |
||
|
C |
2220 |
2410 |
2610 |
2850 |
3070 |
3270 |
3530 |
||
|
D |
2540 |
2760 |
2950 |
3160 |
3450 |
3680 |
3910 |
||
|
E |
1800 |
1930 |
2070 |
2220 |
2420 |
2580 |
2730 |
||
|
F |
460 |
600 |
800 |
1000 |
1100 |
1280 |
1280 |
||
|
G |
380 |
430 |
480 |
530 |
590 |
670 |
670 |
||
