Electric hydraulic solid waste garbage grab
 |
Details:
product description and features:

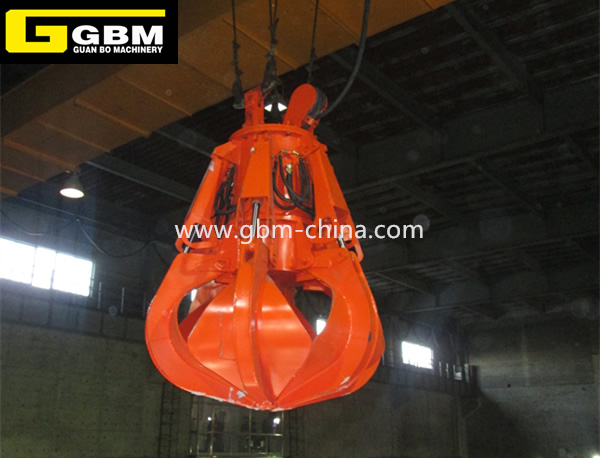

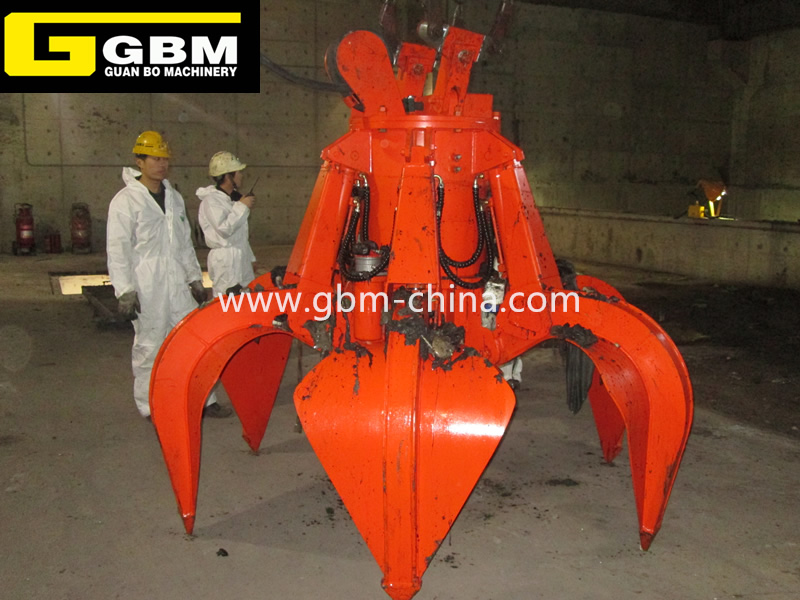

MMG-3 electric hydraulic orange peel grab is use to discharger heavy bulk cargo of irregular shape such as raw iron block ,heavy scrap etc, it is widely used on port, steel plant etc, can be work with various kind of lifting equipment, such as portal crane, over head crane.
>GBM electric hydraulic orange peel grab with following advantage:
>The advantage hydraulic control technology can reliably reduce heating of hydraulic system, have high intensity of continuous operation for 24 hours. Reduce the fault which cause by high temperature of hydraulic system.
>The grab with light weight, powerful in grasping, it can be grasp various rules and irregular materials efficiently.
>Adopt ABB/SIEMENS motor and imported hydraulic components in Germany.Can be control the hydraulic system failure rate reliably.
>The hydraulic control block have adopt plug-in structure which makes the hydraulic system compact and easy maintain
>Special design of bucked teeth, have increase wear resistance and service life.
Contact Us
|
Date sheet |
|||||||||||||||
|
Grab type MMG-3 |
Data （380V 50HZ） |
weight（Kg） |
capacity（m?） |
teeth |
Overall size（mm） |
||||||||||
|
power（KW） |
Close time (s) |
Open time (s) |
Semi-close |
Full close |
A |
B |
C |
D |
E |
F |
a |
b |
|||
|
MHM15-2500 |
15 |
10 |
5 |
2360 |
2660 |
2.5 |
5 |
2520 |
2115 |
2240 |
3245 |
1350 |
2960 |
972 |
350 |
|
MHM18.5-3200 |
18.5 |
12 |
6 |
3290 |
3690 |
3.2 |
6 |
2695 |
2310 |
2515 |
3605 |
1400 |
3280 |
972 |
350 |
|
MHM18.5-4000 |
18.5 |
11.5 |
7 |
3390 |
3810 |
4 |
6 |
2857 |
2081 |
2563 |
3981 |
1400 |
3530 |
972 |
350 |
|
MHM22-5000 |
22 |
11.5 |
7 |
3590 |
4060 |
5 |
6 |
2961 |
2216 |
2724 |
4166 |
1400 |
3760 |
972 |
350 |
|
MHM30-6300 |
30 |
13.5 |
7.5 |
4480 |
5090 |
6 |
6 |
3433 |
2586 |
2975 |
4633 |
1545 |
4240 |
1012 |
350 |
|
MHM30-8000 |
30 |
13.5 |
7.5 |
4680 |
4750 |
8 |
6 |
3522 |
2578 |
3198 |
4932 |
1545 |
4510 |
1012 |
350 |
|
MHM37-10000 |
37 |
19 |
11 |
6400 |
7310 |
10 |
6 |
3867 |
2811 |
3480 |
5408 |
1620 |
4830 |
1033 |
350 |
|
MHM45-12000 |
45 |
17 |
14.5 |
6650 |
7570 |
12 |
6 |
4320 |
3540 |
3960 |
5360 |
1620 |
4895 |
1033 |
350 |
