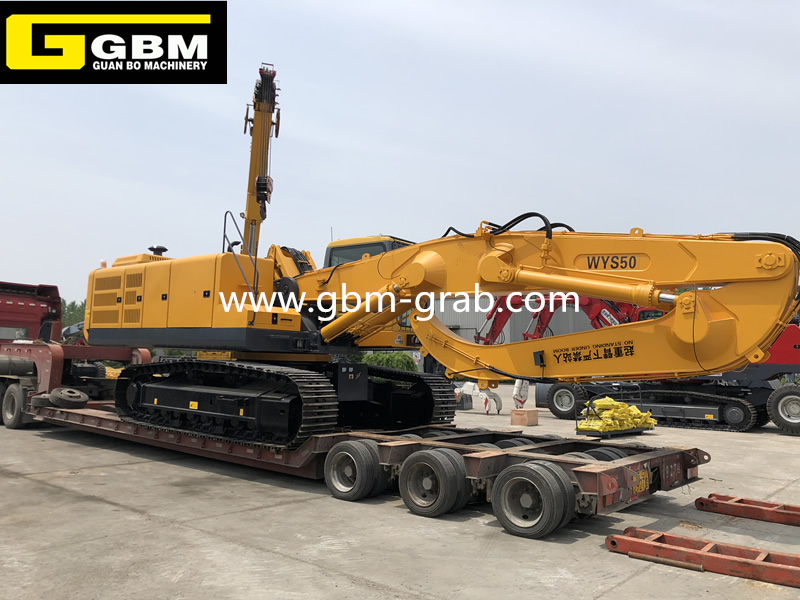

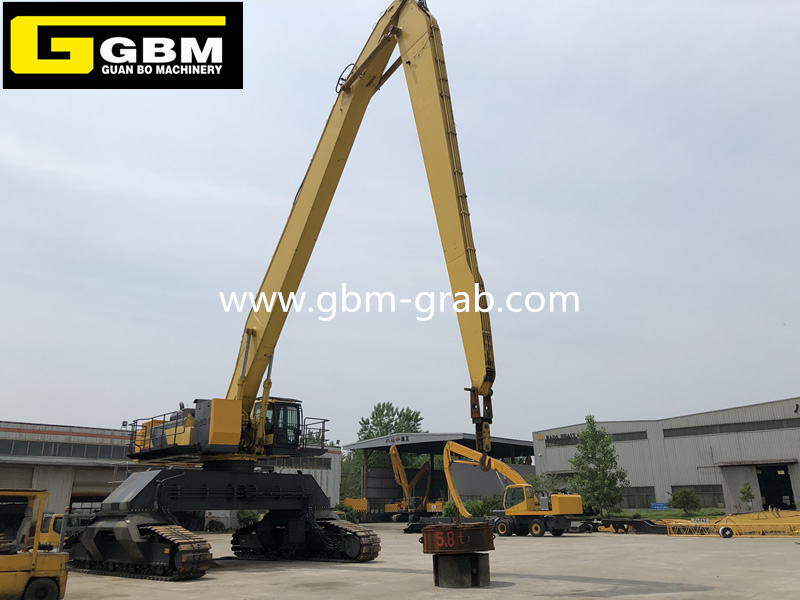

Crawler material handler
 |
Details:
GBM
The main components are selected from world-class brands.
The high-strength steel system is used for the confinement assembly and key steel structures.
The world's leading "dual-power" drive technology with more than 20 years of experience is energy-saving, environmentally friendly, safe and reliable.
It can also be easily replaced with other type grabs to loading& unloading of various different materials; after removing the grab, it can be used as an ordinary crane, and a multi-purpose machine can be used.
Equipped with independent hydraulic cooling system to ensure stable working oil
Contact Us

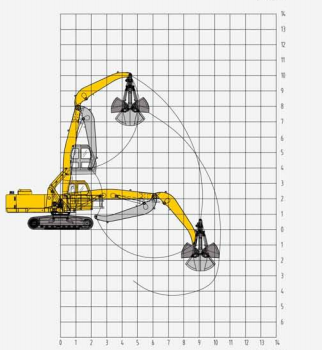

DIMENSIONS
Overall length: 9913mm
Overall height: 3179mm
Overall width: 2980mm
Wheelbase: 4250mm
The maximum lifting height of driving cab: 5500mm
Tail slewing radius: 3600mm
Gap between rotary table and ground:1100mm
Width of rotary table:2700m
Width of platform: 628mm
TECHNICAL PARAMETER
Engine:118kw
Electric Motor:75kw
Fuel tank:320L
WALKING SYSTEM
Walking speed:2.5km/h
Max tranction force:150kn
Gradeability:25%
HYDRAULIC SYSTEM
Max Flow:2*160L/min
Max working pressure:29Mpa
Hydraulic oil tank:320L
MAIN PERFORMANCE PARAMETERS
Total weight:25.5T
Max lifting moment:30T.M
Max swing speed:8r/min
Max swing torque:75KN.m
