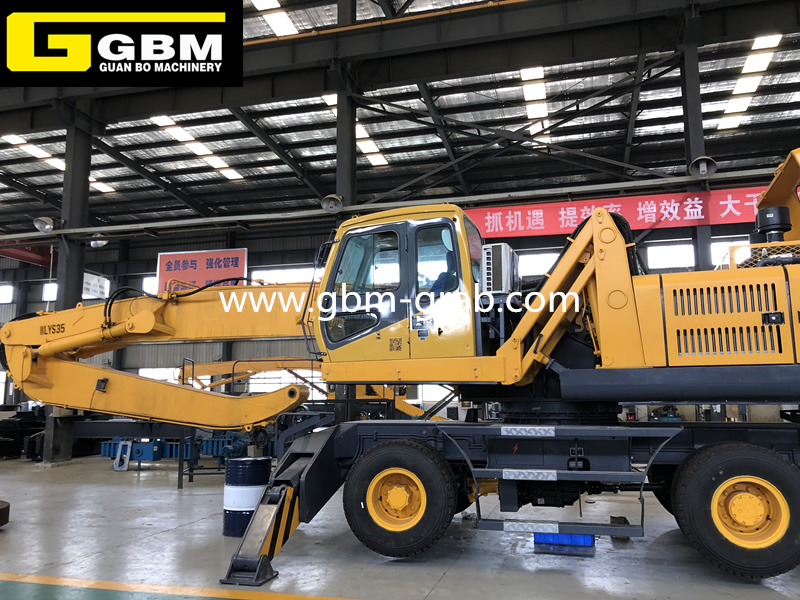

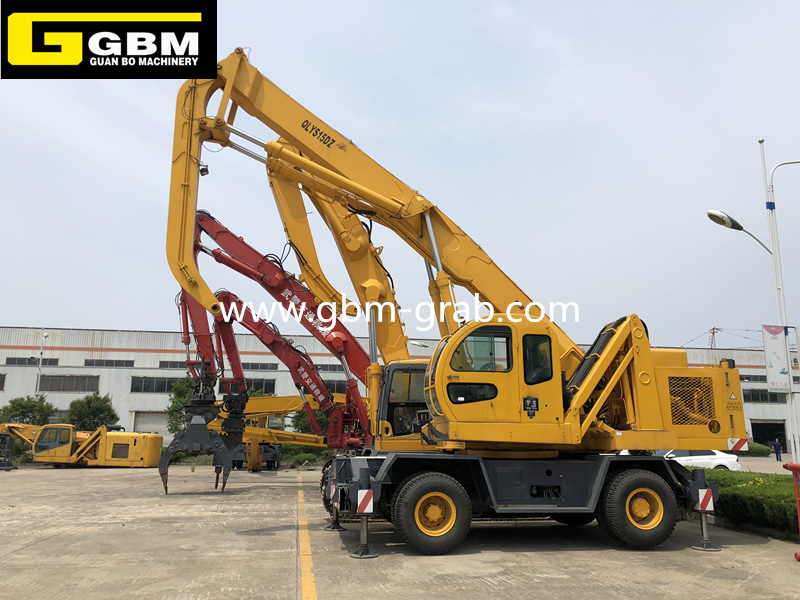

GBM Wheeled material hanlder can be equipped with diesel engine drive, electric drive or hybrid electric-powered "dual-power" drive system, with reliable quality, superior performance and multi-purpose.
The main components are selected from world-class brands.
The high-strength steel system is used for the confinement assembly and key steel structures.
The world's leading "dual-power" drive technology with more than 20 years of experience is energy-saving, environmentally friendly, safe and reliable.
It can also be easily replaced with other type grabs to loading& unloading of various different materials; after removing the grab, it can be used as an ordinary crane, and a multi-purpose machine can be used.
Equipped with independent hydraulic cooling system to ensure stable working oil

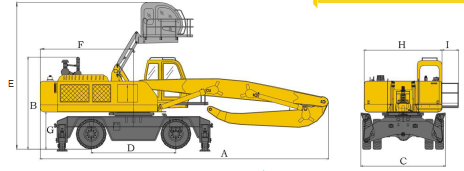

DIMENSIONS
Overall length: 9913mm
Overall height: 3430mm
Overall width: 2990mm
Wheelbase: 2800mm
The maximum lifting height of driving cab: 5840mm
Tail slewing radius: 3600mm
Gap between rotary table and ground:1372mm
Width of rotary table:2700m
Width of platform: 628mm
TECHNICAL PARAMETER
Engine:118kw
Electric Motor:75kw
Fuel tank:320L
WALKING SYSTEM
Walking speed:15km/h
Max tranction force:100kn
Gradeability:10%
HYDRAULIC SYSTEM
Max Flow:2*160L/min
Max working pressure:29Mpa
Hydraulic oil tank:320L
MAIN PERFORMANCE PARAMETERS
Total weight:25T
Max lifting moment:20T.M
Max swing speed:8r/min
Max swing torque:75KN.m
