Fixed belt conveyor system

  • Details:

    Fixed belt conveyor is a kind of conveying equipment with large conveying capacity, low operation cost and wide application range.  This machine is suitable for conveying bulk materials or pieces of materials. According to the requirements of conveying technology, it can be transported by single machine, or it can be combined with other conveying (feeding) equipment to form a horizontal or inclined conveying system.

    Delivery capacity: 10 ~ 3000 t/h

    Bandwidth: B400B2200

    Applicable materials: all kinds of powder, granule and small block materials



    Contact Us

    Belt Width Up to 2.4m
    Belt Length 3,000m +
    Capacity > 8,000 m?/h
    Belt speed Up to 6.0m/s
    Max Incline Maximum 25?
    Drive Type Motorized pulley | Geared motor unit | Motor+fluid coupling+gear box
    Belt Options Antistatic| Fire resistant | Oil resistant | Hard wearing | corrosion resistant
    Tension Unit Below 100m – screw type tail tension unit | Above 100m - gravity tension unit or car type tension unit
    Protection Switches Speed switch | Belt Sway Switches | Pull-cord switch | Blockage sensor
    Construction Materials Conveyor case and internals - stainless or coated mild steel | Conveyor support structure - galvanised mild steel
    Conveyed Materials Wet or dry bulky materials in the form of crumbs, grains, pellets, shreds, dust, powder, flake, or crushed products of bio-matter, sludge and aggregate.



    APPLIED INDUSTRIES AND FIELDS

    Coal conveying system of power plant

    Port storage yard transfer conveying system Raw material conveying system of steel mill
    Coal conveying system of power plant Port storage yard transfer conveying system Raw material conveying system of steel mill
    Open-pit mine conveying system Bulk conveying system for cement plant Sand-gravel aggregate conveying system
    Open-pit mine conveying system Bulk conveying system for cement plant Sand-gravel aggregate conveying system



    SUCCESS PROJECT IN VARIOUS INDUSTRIES
    200,000-ton ore berth project of Dandong Port

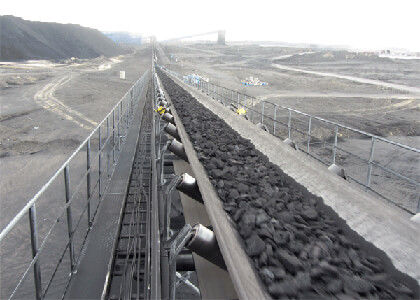

    belt conveyor for coal

    Project name: 200,000-ton ore berth project of Dandong Port
    Material name:        Iron ore        Handling capacity: 5,000t/h
    Belt width:               1,800mm      Belt length: 4,960m
    Belt speed:              4.0m/s         Installation angle:5°

    Project name: Long distance belt conveyor is used for lignite transportation in opencast coal mine
    Material name:        Lignite        Handling capacity: 2,200t/h
    Belt width:               1,600mm    Belt length: 1,562m
    Belt speed:              2.5m/s       Installation angle: -6°~+4°
    Heat-resistant belt conveyors are used to transport clinker in cement plants

    Overland belt conveyor is used to transport coal for coal-fired power plant

    Project name: Heat-resistant belt conveyors are used to transport clinker in cement plants
    Material name:        Cement clinker        Handling capacity: 800t/h
    Belt width:               1,000mm                  Belt length: 320m
    Belt speed:              1.6m/s                       Installation angle: 14°

    Project name: Overland belt conveyor is used to transport coal for coal-fired power plant
    Material name:        Fuel coal        Handling capacity: 1,200t/h
    Belt width:               1,400mm        Belt length: 3,620m
    Belt speed:              2.0m/s            Installation angle: 0°

    SELECTION INSTRUCTIONS

    1.Material to be conveyed:______

    2.Handling capacity: ______ t/h

    3.Bulk Density:______ t/m3

    4.Center distance between the head and tail pulley:______ m

    5.Max. granule size of the feeding material:______ mm

    6.Max. Granule's percentage in whole material:______ %

     7.What equipment is used to feed the material into the belt conveyor :______

    8.What equipment is used to discharge the material from the belt conveyor :______

    9.Working power supply: ______ V ______ HZ

    10.Does the belt conveyor work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have,please send it to our engineer for reference.
